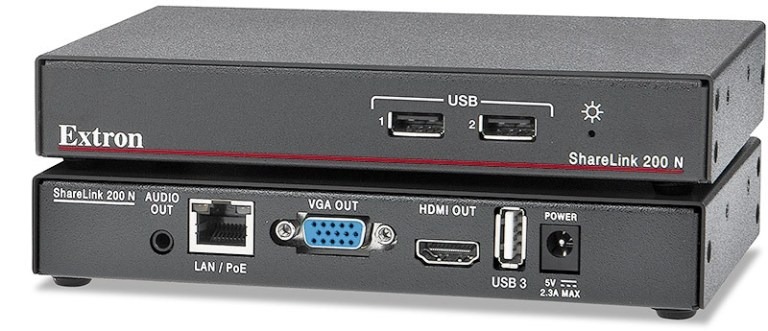

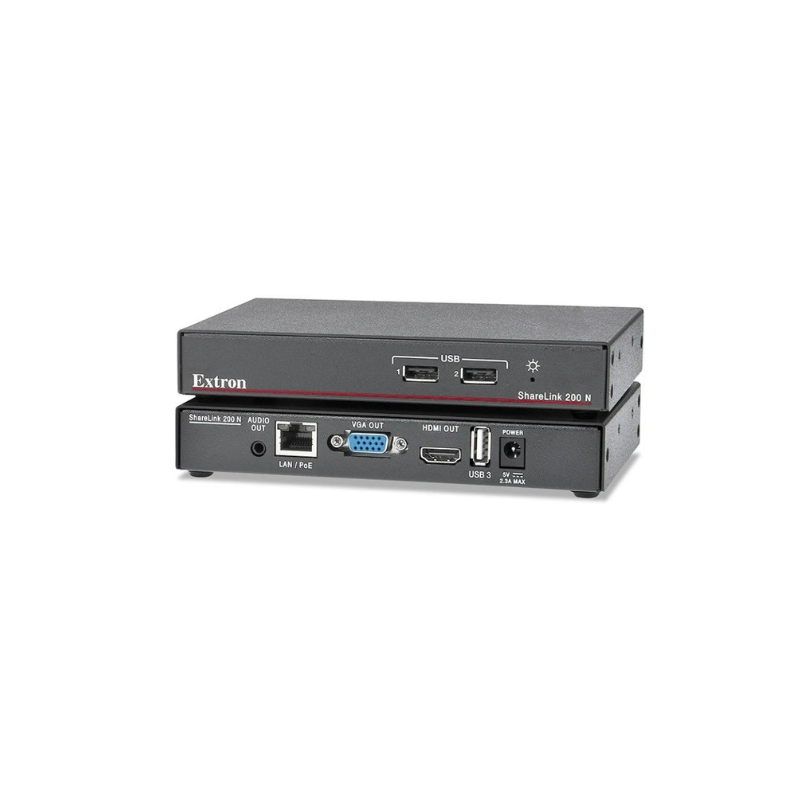

Extron ShareLink 200N Gateway – Technology Bazar

The Extron ShareLink 200 N (Network Version) is a compact, professional-grade wireless collaboration gateway. It enables users to present content—from laptops, tablets, or smartphones—onto a display via your existing Wi-Fi network. The unit supports HDMI and VGA output, Power over Ethernet (PoE), and features collaboration and moderation modes, making it ideal for meeting rooms and classrooms.

Feature	Description
Network Integration	Connects via the existing Wi-Fi network; no need for a dedicated hotspot.
Multi-Device Display	Supports both full-screen sharing and up to four simultaneous device displays in a split-screen format.
WebShare	Enables participants to view presentations on their own devices through a standard web browser.
Collaboration & Moderator Modes	Provides options for group sharing with the ability to enable moderator control for organized sessions.
Multiple Outputs	Offers HDMI, VGA, and audio output options for seamless AV system integration.
USB Functionality	USB ports allow whiteboard interactivity or playback of local media files.
PoE Enabled	Supports Power over Ethernet (PoE), simplifying installation and reducing cable clutter.
Admin Control & Upgrades	Web-based admin interface for configuration, firmware updates, and system management.
Compact & Flexible Design	Small, lightweight unit with versatile mounting options for desktop, wall, rack, or under-desk installation.
Codec Support & Cloud Integration	Compatible with common media formats and integrates with cloud storage services via the MirrorOp app.

Category: Wireless Prsentation

Description
Reviews (0)

The Extron ShareLink 200N Collaboration Gateway (Network Version) enables smooth and reliable wireless content sharing from personal devices to any display without requiring a separate Wi-Fi hotspot. It supports Windows, macOS, Android, and iOS platforms, offering both wired and wireless connectivity for maximum flexibility.

The device allows full-screen streaming from one device or simultaneous display of content from up to four devices in a multi-window format, making collaboration more dynamic. With integrated WebShare technology, participants can view presentations directly on their own devices through a web browser, which is especially useful for overflow rooms or note-taking.

Connectivity options include HDMI, VGA, audio output, USB for media playback or whiteboard use, and an RJ-45 port with Power over Ethernet (PoE) support, reducing cable clutter. It also features Moderator Mode for controlled sharing and Admin Mode for network management, security, and firmware updates.

Compact in design (165 × 85 × 25 mm, approx. 500 g), the ShareLink 200N can be placed on a desk, mounted on a wall, installed in a rack, or positioned under a table—making it a versatile choice for professional AV setups.
